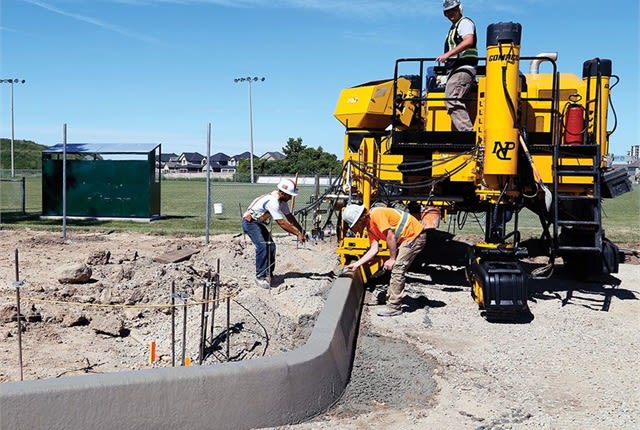

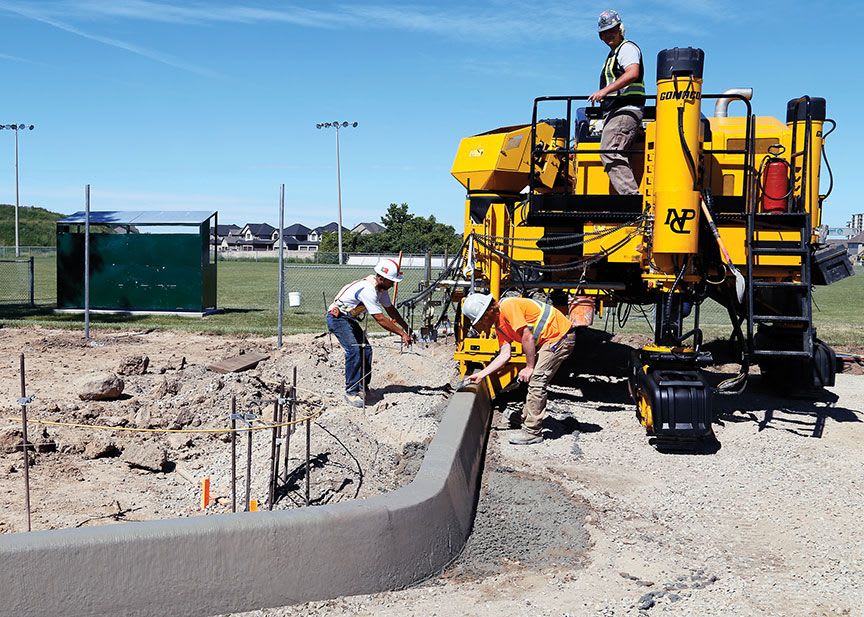

A Gomaco Commander IIIx three-track paver at work on a parking lot project, slipforming concrete curb and gutter with a Topcon 3D guidance system. Photo courtesy of Gomaco.
The three-track Commander III Xtreme concrete slipform paver now has the ability to slipform a 24-inch radius, making curb and gutter work for municipal parking lot projects much easier, according to manufacturer Gomaco.
The Xtreme Package for multi-application pavers includes rotary-sensored slew drives for steering, sensored leg positioning, independent travel circuits to each track, radius software, Gomaco’s three-sensor radius system, and repeatable mold offset, Gomaco said.
Handles Tight Radii Curb Islands
The Commander III is a leading machine for high-volume curb and gutter projects, and the Gomaco Xtreme package “gives the Commander the capability to go into parking lots and pour the intricate and tight radii curb islands that are designed into so many of them,” said Kent Godbersen, Gomaco’s vice president of worldwide sales and marketing.
The Commander IIIx features extreme turning capabilities with rotary-sensored slew drives on each of the three tracks. Gomaco’s software engineers created the new extreme radius software bundle for the G+ control system that allows the operator to program the size of the radius into the controller.
“The new Xtreme steering adds enhanced mobility to the machine, so it can get in and around a parking lot project like never before,” Godbersen said.

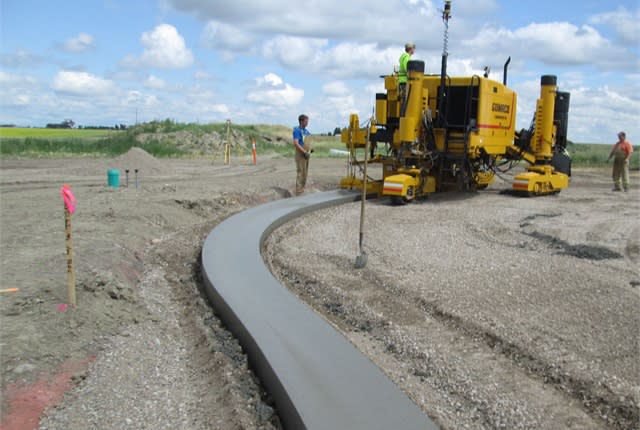

Gomaco’s Commander IIIx slipform paver boasts extreme turning capabilities, making the machine suitable for a wide range of curb and gutter projects. Photo courtesy of Gomaco.
G+ System Manages Track Angles and Speeds
As the Commander IIIx approaches the radius, with the values already dialed in, the operator can activate the radius program so the machine slipforms around the radius.
The G+ control system manages all aspects of traveling around the radius, including track angles and variable track speeds. When paving with stringline, the Commander IIIx uses the Gomaco three-sensor steer system for the tight radius.
The proper speed of each of the tracks is maintained by G+ with independent hydraulic circuits to each track, so each one is traveling at the necessary, varied speed to maintain the smooth radius. The Commander IIIx’s three tracks also make slipforming curb and gutter in tight clearance conditions easier. Their extreme turn capability combine with the Commander IIIx’s all-track steering and all-track positioning to create a superior intelligent paver, the company said.
The intelligent all-track positioning on the Commander IIIx includes a smart hydraulic cylinder on all three legs. Because of the smart cylinders, the G+ system knows the position of all three tracks. Intelligent offset is achievable with a smart hydraulic cylinder for telescoping the mold-mounting system. This provides the G+ system with the ability for repeatable mold offset. Moreover, the trimmerhead and mold have independent vertical adjustments for raising and lowering.
The Commander IIIx’s G+ control system easily interfaces with stringline or a 3D guidance system for tight-radius curb and gutter applications. The slipform paver is also available with Gomaco Remote Diagnostics (GRD) for machine troubleshooting, diagnostic reviews, software updates, and more.
